Industrial sewing machines utilize specialized feeding mechanisms to control fabric movement, ensure precise stitch formation, and maximize production efficiency across heavy-duty manufacturing sectors. Selecting the appropriate mechanism depends heavily on material thickness, surface friction, and the integration of automated trimming components like a high-performance Moving Knife system.

At a Glance

Section

Summary

Introduction to Sewing Machine Feeding Mechanisms

An overview of how material feeding systems operate in industrial environments to achieve precise material movement and stitch uniformity.

The Role of Drop Feed Mechanisms in Modern Sewing

A comprehensive breakdown of standard drop feed operations, limitations with slippery or heavy fabrics, and component wear profiles.

Understanding Walk Foot and Compound Feed Systems

Analysis of synchronized needle and presser foot movements engineered for heavy-duty textiles and multi-layered configurations.

Puller Feed and Differential Feed Configurations

Exploration of auxiliary rolling mechanisms and dual feed dog systems optimized for extra-long canvas or highly stretchable knit fabrics.

Integrating the Moving Knife with Feed Mechanisms

Technical insight into how automated thread trimming structures interface with feeding sequences to maintain rapid automated cycle times.

Comparative Technical Analysis of Feeding Types

A direct matrix comparison detailing material compatibility, mechanical complexity, and standard parts specifications.

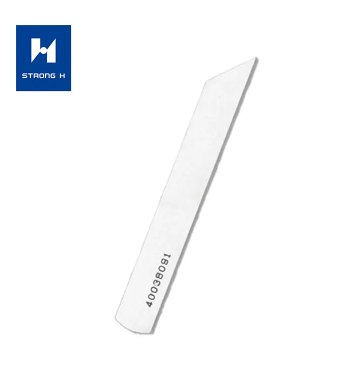

Moving Knife.png

Introduction to Sewing Machine Feeding Mechanisms

Sewing machine feeding mechanisms represent the core mechanical assembly responsible for advancing materials through the stitching zone at highly synchronized intervals.

In industrial production, the precision of material advancement directly governs the ultimate quality, strength, and appearance of the final seam. Without an optimized material delivery layout, high-speed automated systems will encounter persistent issues including uneven tension, physical distortion, puckering, or structural weakening. Modern factories rely heavily on precise engineering components to ensure that multi-layered fabrics stay perfectly aligned during intense production cycles.

The synchronization between the needle bar, the shuttle hook, and the lower transport components forms the foundation of reliable textile assembly. Each unique style of material demands a tailored mechanical force to pull or push it smoothly without inflicting surface marking or compression defects. Industrial organizations must carefully analyze these internal configurations when equipping their assembly lines for specific manufacturing requirements.

Furthermore, auxiliary operational systems must integrate flawlessly with the primary material advance modules. For example, automated edge cutting and clean automated thread trimming rely explicitly on stable material positioning during the final phase of the stitch cycle. Utilizing premium, accurately machined components from a reliable supplier of industrial sewing machine parts guarantees that these tightly timed interactions proceed without costly operational delays.

Key Functions of Industrial Feeding Assemblies

1. Material Advancement Consistency

Ensuring identical linear movement per single needle penetration to maintain tight adherence to preset quality tolerances.

2. Layer Alignment Protection

Preventing physical shifting between top and bottom textile plies when processing highly smooth or elastic specialized synthetics.

3. Automated Trim Integration

Providing a highly stable positional baseline so automated cutting elements can slice threads cleanly at the correct anatomical location.

The Role of Drop Feed Mechanisms in Modern Sewing

The drop feed mechanism stands as the most widely implemented transport design, utilizing a multi-toothed lower feed dog that rises, moves backward, drops, and returns to advance the fabric.

This classic kinematic sequence relies on a localized elliptical motion beneath the throat plate to advance lightweight to medium-weight woven fabrics cleanly. Because the force is applied strictly from the bottom surface, the mechanism provides excellent visibility and swift direction changes for intricate decorative topstitching. However, it exhibits mechanical limitations when confronted with high-friction synthetic polymers, heavy industrial webbings, or multi-layered assemblies.

When high-speed drop systems run heavy materials, the top layer often lags behind the bottom layer due to natural ply shift and atmospheric friction from the presser foot. This requires operators to manually pull materials, introducing dangerous human errors and inconsistent spacing parameters. Consequently, modern high-volume apparel facilities regularly modify these setups with advanced thread cutters to control costs.

To prevent premature deterioration of the delicate toothed teeth, operators must verify physical alignment and clean away compacted lint daily. Implementing an automated thread trimming system featuring a durable Moving Knife ensures that excess thread tails are removed instantly, preventing lower mechanical jams within the feed dog housing.

Drop Feed Component

Standard Structural Material

Primary Function in Assembly

Toothed Feed Dog

Hardened Carbon Steel

Engages bottom fabric surface to provide linear propulsion

Feed Rock Shaft

Forged Iron Alloy

Transmits lateral reciprocating motion from the main drive cam

Standard Throat Plate

Polished Stainless Steel

Supports material load and provides slot pathways for teeth

Understanding Walk Foot and Compound Feed Systems

Walk foot and compound feed mechanisms utilize multiple synchronized elements, including alternating presser feet and an actively moving needle bar, to transport heavy fabrics concurrently.

In a compound feed layout, the needle penetrates the fabric and remains embedded within the material layers while moving horizontally in tandem with the lower feed dog. Simultaneously, an inner walking foot presses firmly down to clamp the assembly together, ensuring that all layers travel at exactly the same speed. This completely eliminates the possibility of surface slipping or internal misalignment, making it the premier choice for automotive upholstery, leather goods, and thick tarp fabrication.

The mechanical complexity of a compound feed system demands robust internal linkages to absorb intense structural vibrations during continuous operations. Each pivot point must be meticulously timed to ensure the needle exits the fabric precisely as the outer presser foot descends to lock the material in position. If the timing drifts by even a fraction of a millimeter, the needle will bend or strike the throat plate, resulting in catastrophic breakdown.

Because these systems process exceptionally thick, dense materials, the cutting forces required for automated finishing are significantly higher. Standard stationary blades wear down quickly under these conditions, which is why modern heavy-duty machines integrate specialized cutting modules. Implementing a highly resilient, precision-engineered Moving Knife setup ensures that thick polyester or nylon threads are severed cleanly at the end of each programmatic cycle without damaging the complex feeding feet.

Maintenance Tip: Lubricate the alternating walking foot eccentric links every eight hours of continuous operation with high-purity ISO VG 18 spindle oil. Check the needle bar rock frame for lateral play annually, and ensure that any integrated thread trimming components are completely free of packed fiber debris to preserve structural timing.

Puller Feed and Differential Feed Configurations

Puller and differential feed mechanisms utilize auxiliary mechanical elements to handle ultra-long canvas runs or highly stretchable knitted textiles without causing structural distortion.

A puller feed system incorporates an active rubberized or serrated metal roller located immediately behind the standard presser foot assembly. This roller turns at a carefully calibrated surface velocity to assist in pulling massive, heavy items like commercial boat sails, heavy military tents, or thick geo-textile liners through the machine. By providing continuous rear tension, it prevents heavy fabrics from bunching up and ensures perfectly flat, straight seams over long distances.

Conversely, a differential feed configuration utilizes two distinct, independently driven lower feed dogs operating in tandem. The front feed dog can be programmed to move further or faster than the rear feed dog, effectively gathering or stretching the fabric structure directly beneath the needle. This precise control is absolutely vital for manufacturing modern athletic wear, synthetic underwear, and flexible knit goods that would otherwise pucker or stretch out of shape under normal transport forces.

Both specialty configurations rely on pristine downstream components to finish product runs cleanly without snagging or marring the delicate surfaces. When utilizing automated lines, the rear trimming cycle must function smoothly alongside these high-tension or gathered materials. Selecting optimized parts from an authorized supplier of premium sewing machine components ensures your customized configurations deliver uniform quality across varied production batches.

Primary Applications for Specialized Feeds

1. Commercial Tarpaulins and Tents

Utilizes heavy mechanical pullers to maintain constant linear tension across long fabric sections.

2. Elastic Athletic Knit Wear

Deploys precision differential adjustments to gather or stretch flexible fabrics during edge overlocking.

3. Heavy Automobile Safety Restraints

Integrates compound dual-drive systems coupled with a specialized heavy-duty Moving Knife assembly to manage thick nylon structural webbing.

Integrating the Moving Knife with Feed Mechanisms

Integrating an automated Moving Knife component requires precise mechanical timing to ensure the trimming cycle occurs only when the feeding mechanism has completely stopped material movement.

Modern automated sewing stations rely on advanced trimming modules to maintain fast cycle times and eliminate manual thread clipping. The cutting cycle begins immediately after the needle reaches its highest position and the feed dogs drop completely beneath the throat plate surface. At this exact microsecond, the driving cam activates the internal Moving Knife, sweeping it across the thread loop catcher to sever both the needle and bobbin threads with absolute precision.

If the feeding components fail to clear the cutting path or if the material slips slightly forward, the blade can strike the hard steel feed dog. This causes immediate blade dulling, structural chipping, or expensive damage to the underlying linkage drive. Therefore, high-speed automated lines require specialized cutting components engineered to withstand accidental contact and resist intense frictional heat.

Investing in a premium mechanical cutting component constructed from advanced, corrosion-resistant alloys significantly extends blade life in demanding factory environments. These specialized components maintain razor-sharp cutting edges over millions of automated cycles, dramatically reducing downtime for blade replacements and ensuring clean, unfrayed thread ends across all product lines.

Trimming Specification

Optimal Operational Standard

Impact on Feed Mechanism Lifecycle

Blade Clearance Height

0.15mm to 0.25mm above lower driver plate

Prevents catastrophic mechanical impacts with rising feed teeth

Cutting Drive Timing

Synchronized at 280 degrees of main arm rotation

Guarantees material is perfectly stationary before blade actuation

Structural Steel Hardness

Greater than 62 HRC (Rockwell Scale)

Resists abrasive wear from high-tensile synthetic multi-filaments

Comparative Technical Analysis of Feeding Types

A rigorous comparative technical analysis reveals that every individual material feeding mechanism possesses distinct trade-offs across speed, fabric weight capacity, and overall system maintenance complexity.

Standard drop feed systems offer the highest maximum rotational sewing speeds, frequently exceeding 5,000 stitches per minute on automated garment lines. However, they lack the multi-directional mechanical gripping force required to process dense multi-layered assemblies or stiff heavy-duty industrial materials. For these challenging applications, manufacturers must accept the lower operational RPMs of compound walking foot systems to guarantee flawless ply alignment and seam strength.

When selecting a transport mechanism, engineering managers must also evaluate how effectively the system integrates with automated under-bed thread trimmers. Complex multi-axis feeding systems restrict the physical space available beneath the throat plate, requiring compact, highly durable trimming profiles. Selecting specialized, slim-profile components ensures smooth mechanical operation without compromising structural rigidity or ease of maintenance access.

Ultimately, long-term factory profitability depends on balancing high-speed production output with minimal machine downtime. Outfitting high-speed production lines with durable, precision-matched components from an industry-recognized brand ensures consistent material transport and reliable automated trimming performance year after year.

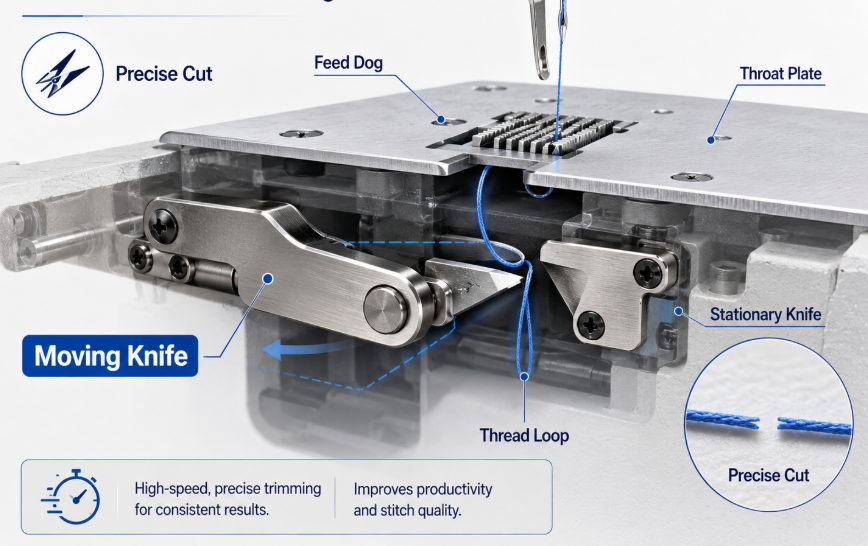

Working Principle: The automated trimming sequence relies on an under-bed driving lever that forces the specialized Moving Knife forward across the hook assembly. The hook catches the extended thread loop, pulling it firmly across the razor-sharp cutting edge of the stationary counter-blade to deliver an instantaneous, clean cut without requiring any manual trimming intervention.
